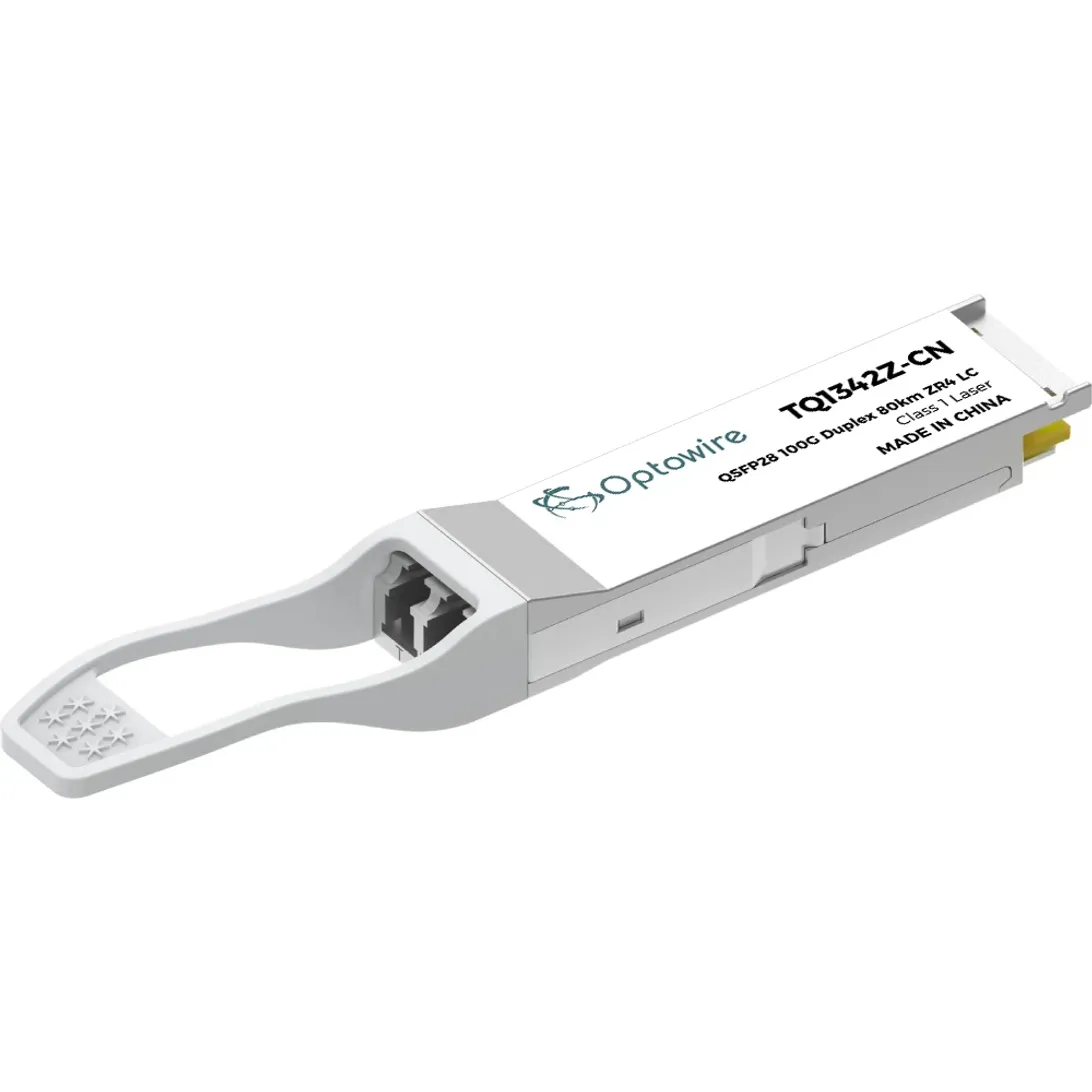

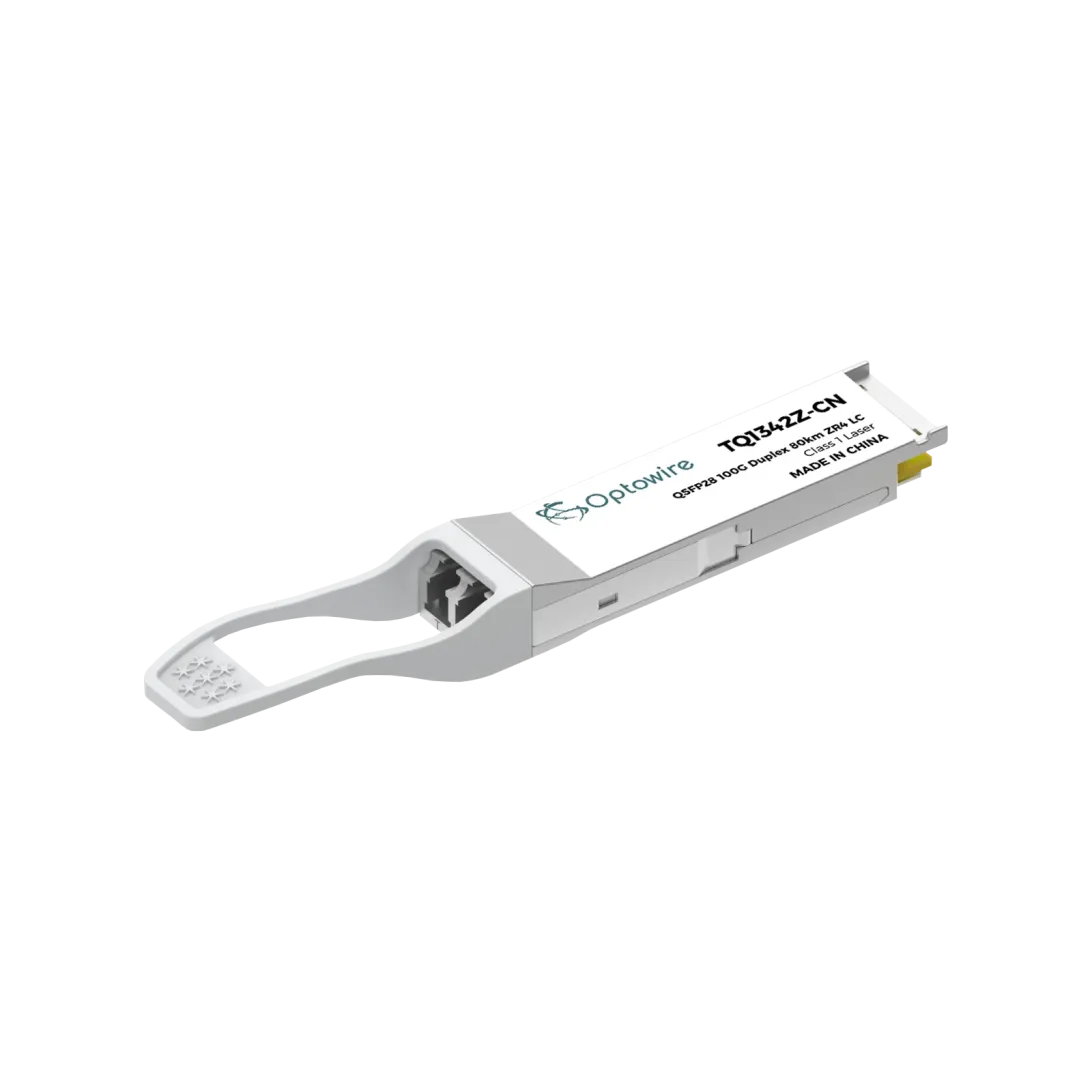

QSFP28 100G DUplex ZR4 80km LC

This 100G QSFP28 transceiver is designed for 100GBASE-ZR4 Ethernet and ultra-long-reach optical network applications. It supports an aggregate data rate of 103.125 Gbps and provides transmission distances up to 80 km over single-mode fiber. The module integrates four LAN-WDM EML laser channels and four PIN+SOA receiver channels, features a duplex LC optical interface, and operates on a single +3.3 V power supply. It is fully hot-pluggable in the QSFP28 form factor, supports Digital Diagnostic Monitoring (DDM), and offers low power dissipation below 6 W. The transceiver complies with Class 1 laser safety and RoHS (lead-free) standards and operates within a commercial temperature range of 0 °C to +70 °C. It is ideal for metro, backbone, and data center interconnect applications requiring high reliability and long-distance 100G transmission.
